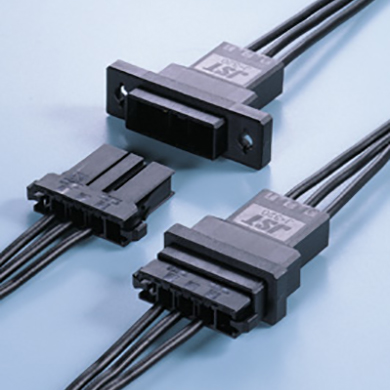

Available in both wire-to-board and wire-to-wire connection, the JFA connector is applicable to a wide range of applications e.g. from signal to output circuits.
*Double-spring construction
To achieve superior contact reliability the socket contact
| Product Profile |
| Series | JFA connector J300 series (W to W 5.08mm pitch) |
| Category | Wire to Wire Connectors |
| Type | Crimp style |
| Feature | With secure locking device, High electric current capacity, High withstanding voltage |
| Specification |
| Pitch | 5.08 mm |
| Current rating | 15A (Single circuit/AWG#14) |
| Voltage rating | 600V |
| PC board mounting direction | Wire to wire |
