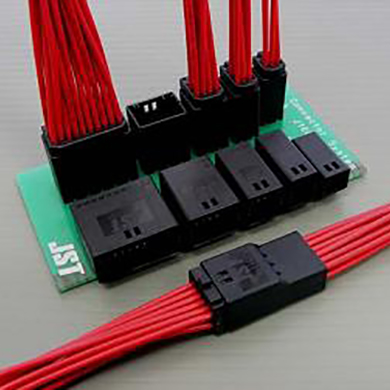

It is a hig reliability connector corresponding to demand of the miniaturization of electronic equipment and the wire size of AWG#18.
| Product Profile |
| Series | JFA connector J1000 Series (W to W) |
| Category | Wire to Wire Connectors |
| Type | Crimp style |
| Feature | With secure locking device |
| Specification |
| Pitch | 2.2 mm |
| Current rating | 6.4A (3 circuits/AWG#18) |
| Voltage rating | 125V |
| PC board mounting direction | Wire to wire |
eJFA-J1100.pdf
