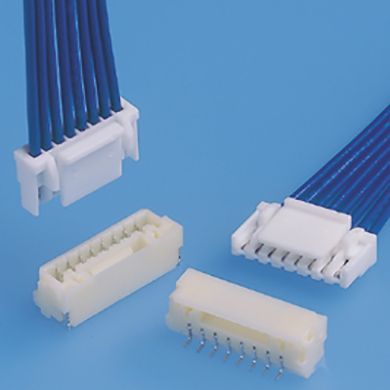

Developed for to PDP, LCD or small electronics equipments.
This low insertion force type connector realizes easier mating operation.
The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.
| Product Profile |
| Series | GH connector |
| Category | Wire to Board Crimp style Connectors |
| Type | Disconnectable type Crimp style, With secure locking device |
| Feature | With secure locking device |
| Specification |
| Pitch | 1.25 mm |
| Current rating | 1.0A (AWG#26) |
| Voltage rating | 50V |
| PC board mounting direction | Top entry, Side entry |
