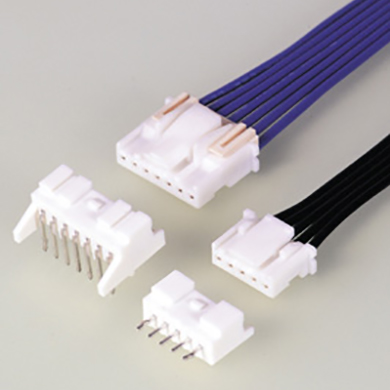

2.0mm pitch connector with secure locking device
*Secure locking device
The housing has a locking device to prevent accidental disconnection because of routing wires or of vibration, and also reverse and different circuit numbers mating.
| Product Profile |
| Series | PA connector |
| Category | Wire to Board Crimp style Connectors |
| Type | Disconnectable type Crimp style, With secure locking device |
| Feature | With secure locking device |
| Specification |
| Pitch | 2.0 mm |
| Current rating | 3A (AWG#22) |
| Voltage rating | Standard type/250V Retainer mountable type/100V |
| PC board mounting direction | Top entry, Side entry |
